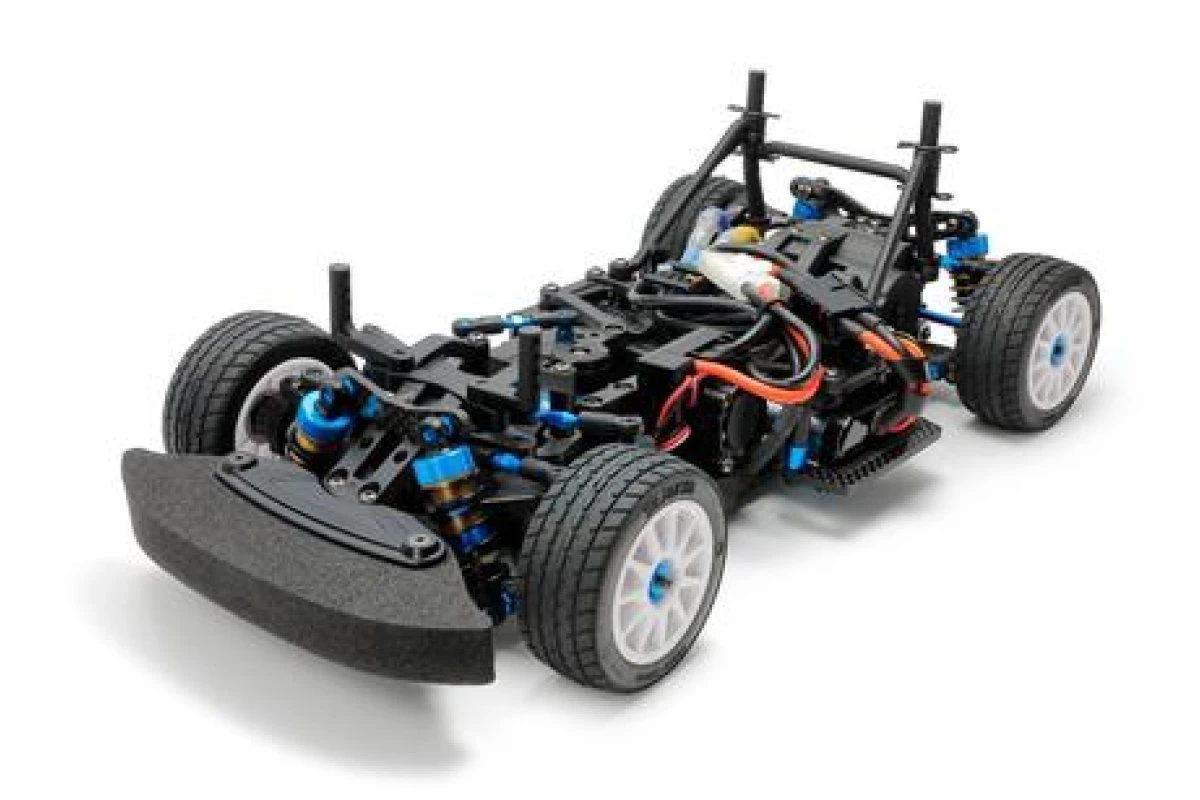

The Tamiya M-08 Chassis platform gets a performance boost with this Limited-Edition release. The M-08R Chassis Kit
employs various kinds of option parts such as a ball differential, for the rear gearbox, and TRF (Tamiya Racing
Factory) precision oil dampers to get ready for club races!

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel
drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different
wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms
for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub
carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure
powerful drive under acceleration.

• 1/10 scale R/C model assembly kit.
• The TA06 Rear Ball Differential Set (Item 54306) utilizes twelve 3/32-inch balls to give superb stability.

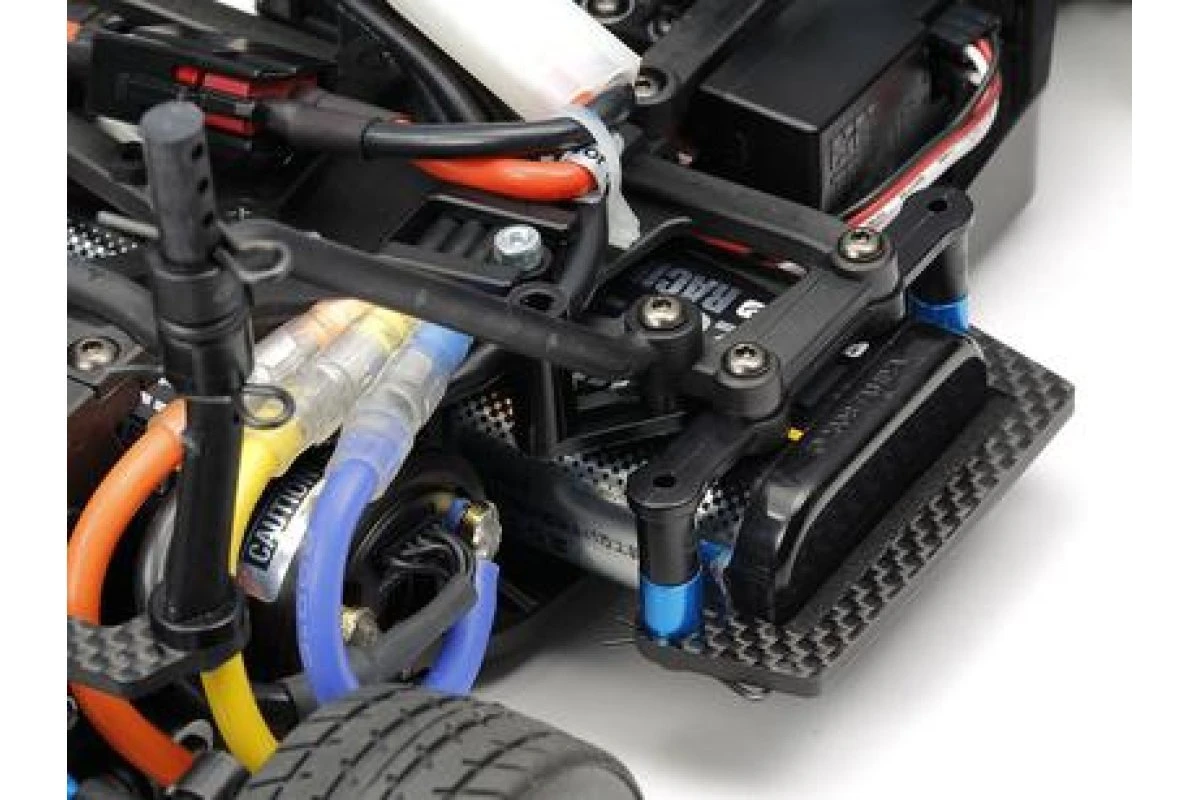

• Includes carbon fiber components such as battery holders and body mount base (Item 54908).
• M-08 Concept Reinforced K Parts (Gearbox) (Item 54983) give sturdier gearbox and steering setups, for more
  efficient
  drive and improved steering feel.
• Comes with the dedicated chassis weight (20g).
• Features hex head screws.
• M-07 Concept Reinforced D Parts (Suspension Arms) (Item 54811) featuring carbon fiber-reinforced resin allow
  superior cornering ability.
• Durable, lightweight aluminum turnbuckle shafts (3x18mm; Item54247, 3x23mm; Item 54248, and 3x32mm; Item 54249)
  allow adjustment of length without removing adjusters.

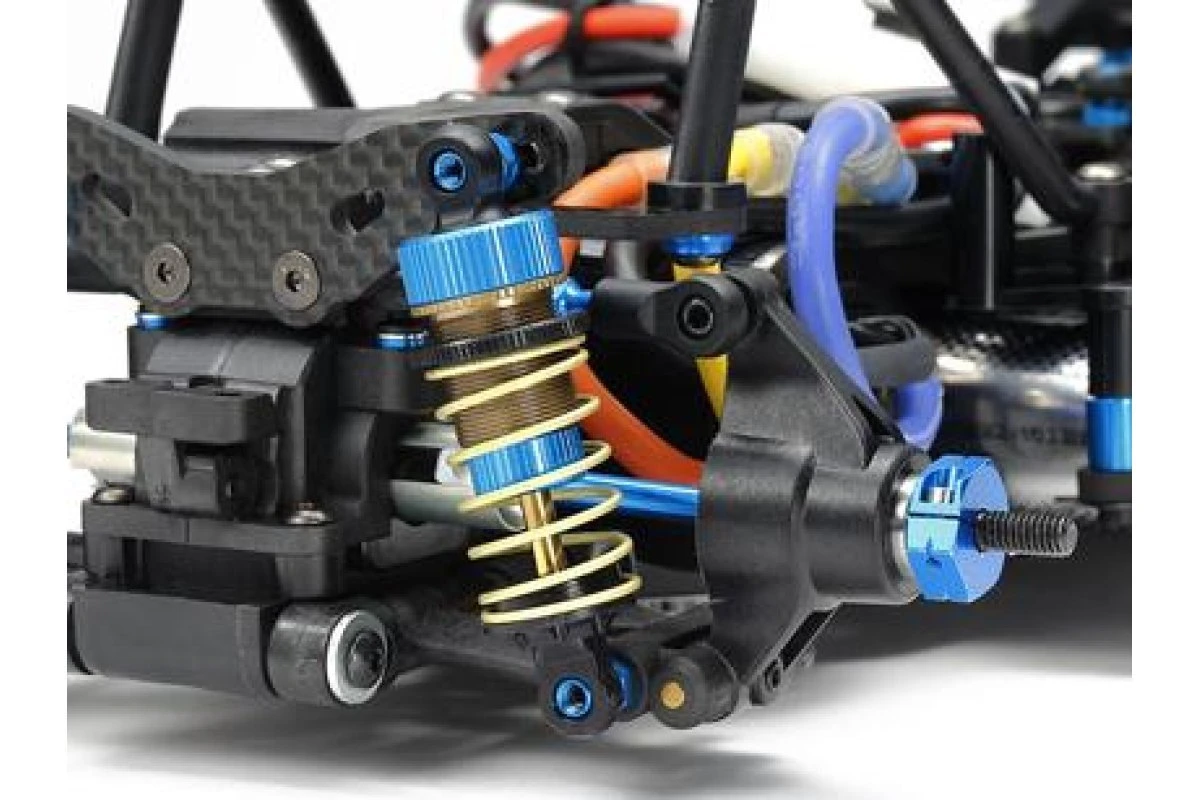

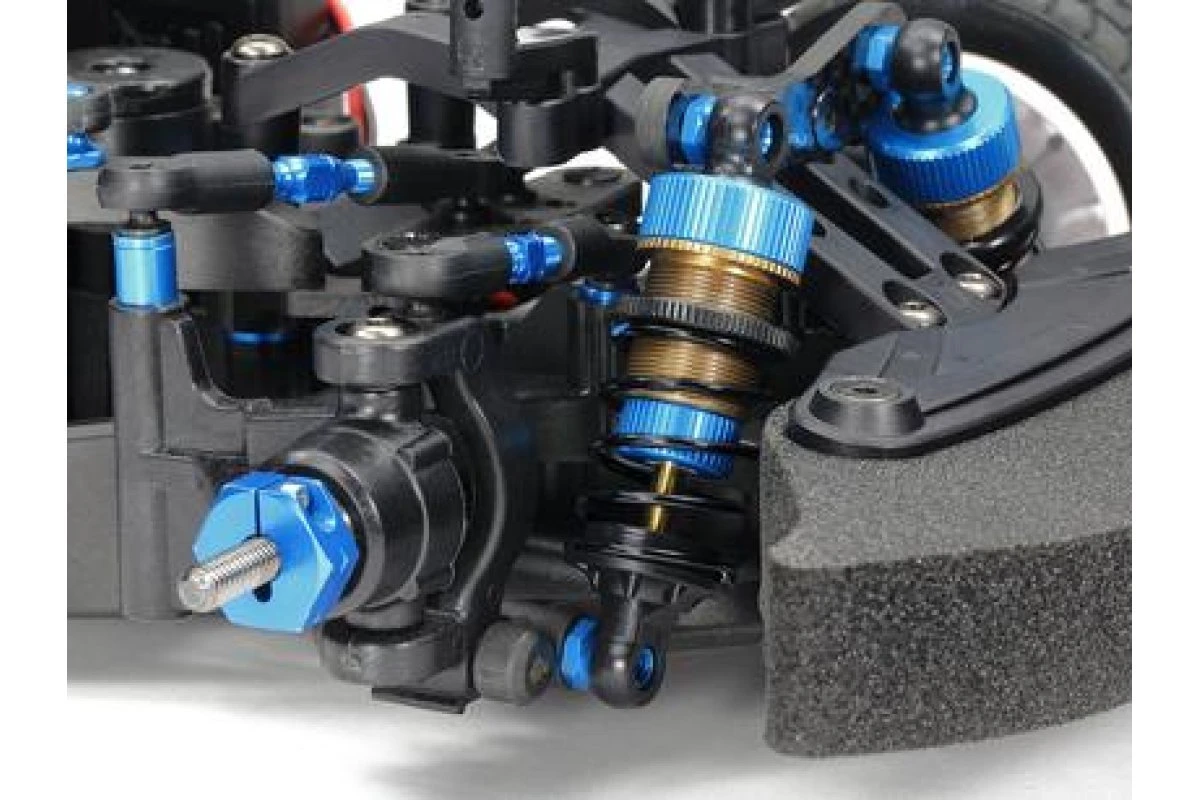

• Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers+ (4pcs.) (Item 42355).
• The 1.3mm diameter damper pistons (x3) give smooth oil flow and facilitate more flexible suspension.

• Adjustable Gear Ratio: Yes
• Bearings Includes: Full Ball Bearings
• Chassis Material: FRP Fiberglass Reinforced Plastic
• Chassis Type: M-08
• Construction Type: Assembly Kit
• Differential Type: Ball Pressure Plate
• Drive Type: 2WD
• Electronic Speed Control (ESC) Sold Separately
• Motor Sold Separately
• Required To Complete: 2-channel radio, steering servo, ESC, 7.2-7.4volt battery & battery charger, motor,
  M-Chassis
  Body Set, and M-chassis tires
• Scale: 1/10
• Shock Damper: Aluminium Oil Filled
• Suspension: Fully Independent Double Wishbone
• Terrain Use: On-Road

Option Parts Included

• 42143: 4mm Aluminium Serrated Wheel Nut (4pcs. -Blue)
• 42357: Cross Joints for Low Friction Assembly Universal Shafts
• 51000: Hi-Torque Servo Saver (Black)
• 53509: Hard Fluorine Coated 0.6 Aluminium Pinion Gear (20T/F201)
• 53642: 5mm Aluminium Ball Connector (Blue)
• 53823: Clamp Type Aluminium Wheel Hub (5mm Thick)
• 53851: 46mm Titanium Coated Suspension Shafts 2pcs.
• 53917: 2.6mm Titanium Coated Suspension Shaft Set for Reversible Suspension
• 53968: 5x5mm Hard Hex Head Ball Head Connector (5pcs.)
• 54183: M-Chassis Reinforced Freewheel Axle Set
• 54868: Open Face 5mm Reinforced Adjusters (Medium/8pcs.)
• 54869: Open Face 5mm Reinforced Adjusters (Long/8pcs.)
• 54906: M-08 Concept Aluminium Shaft Set
• 54969: 33mm Lightweight Aluminum Swing Shafts (2pcs.)

• 7.2V NiMH Battery
  & Compatible Charger
• Standard Sized Servo
• Electronic Speed Controller (ESC)
• 2Ch
  Transmitter & Receiver
